CNC machining shops lose an average of $1,800/week to scrap parts—often because of uncalibrated CNC probes. A probe that’s off by just ±0.002mm can ruin 50+ precision parts before you notice.
The good news? You don’t need a professional technician to calibrate your CNC probe. In this guide, we’ll break down 4 easy steps to get your probe back to ±0.001mm accuracy—works for Fanuc, Siemens, and Mitsubishi CNC systems. We’ll also share how
Qidu Metrology’s probe accessories simplify calibration (no extra tools needed).
Don’t wait for scrap parts to act. Calibrate your probe if you see these red flags:
Measured values don’t match standard parts: If your probe reads 10.005mm for a 10.000mm gauge block (error >±0.001mm), it’s time to calibrate.
Probe was hit or dropped: Even a small bump can misalign the probe tip—Qidu Metrology’s probe tool holders have anti-loose designs, but calibration is still needed after impacts.
It’s been 6+ months since last calibration: Dust, vibration, and regular use wear down probes. Monthly checks + 6-month full calibration keep accuracy consistent.
You’ll need 2 tools: a certified gauge block (e.g., 10mm or 20mm, accuracy ±0.0005mm) and your CNC system’s calibration menu. Follow these steps:
Clean the probe tip (use a lint-free cloth—avoid alcohol, which can damage ruby balls).
Wipe the gauge block to remove dust or oil (even a fingerprint adds 0.0003mm error).
Secure the gauge block on the worktable—use a magnetic clamp to keep it stable (no movement = accurate readings).

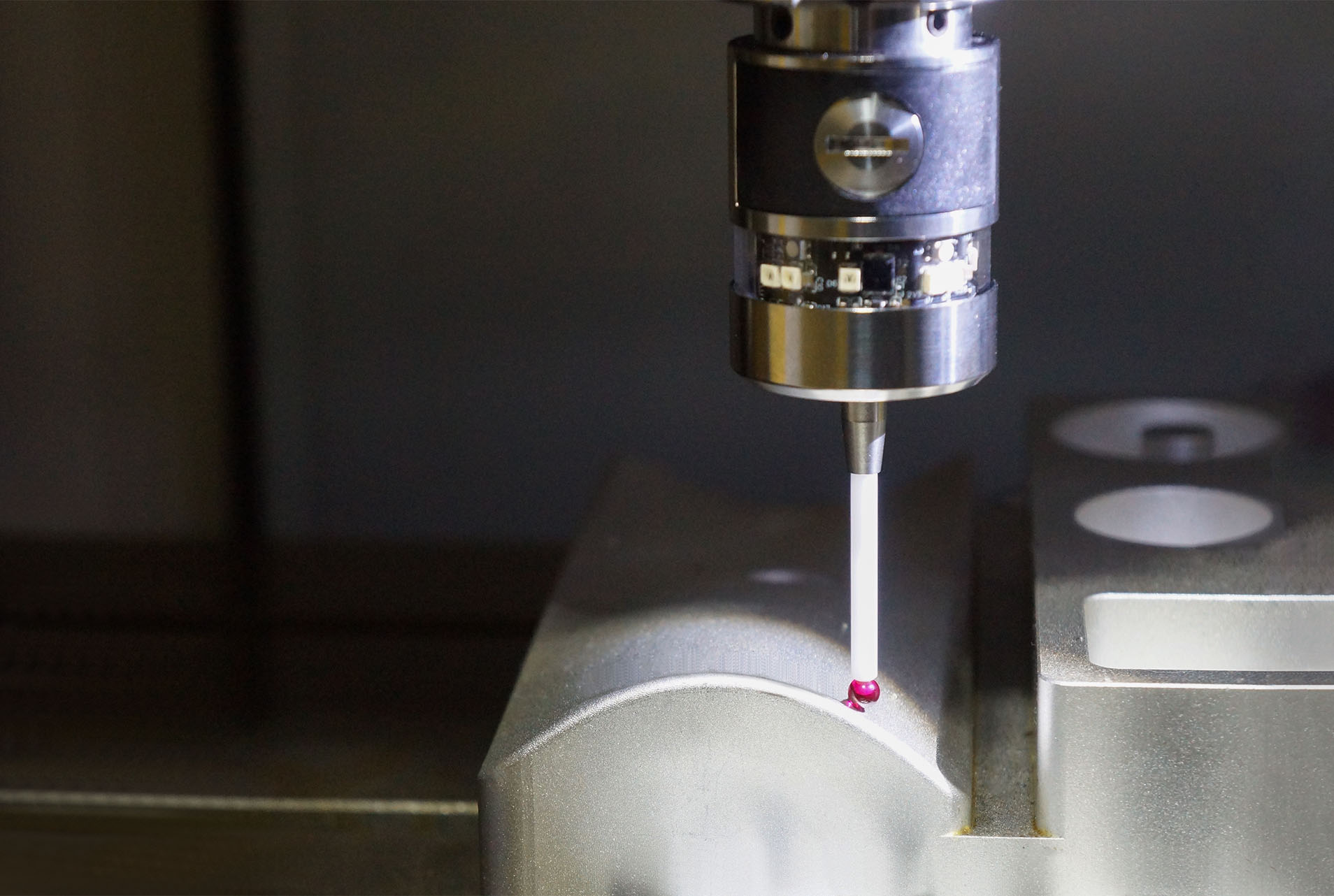

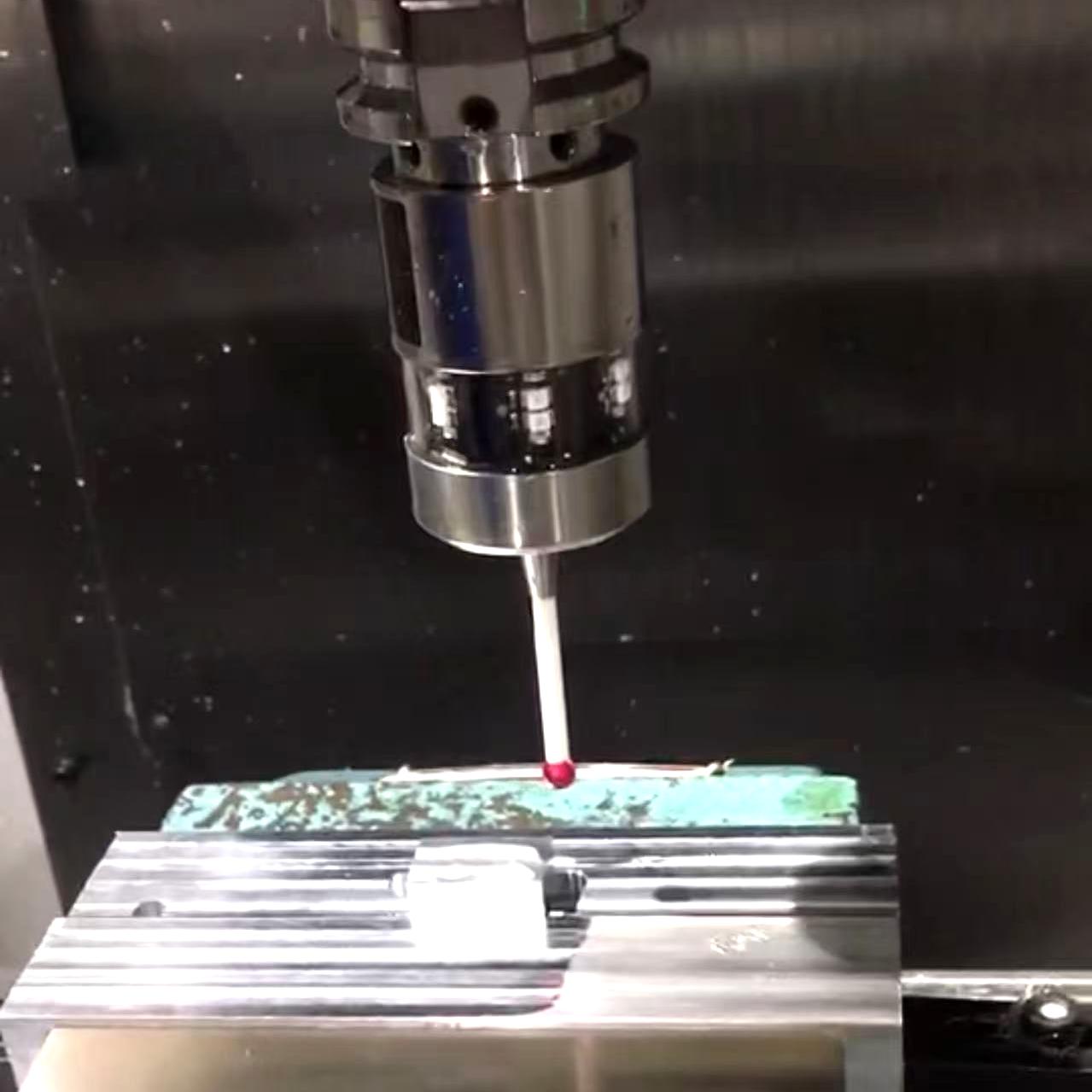

Move the probe to the gauge block (use manual mode—go slow to avoid hitting the block).
Start the calibration: The probe will touch the block 3x (front, side, top) to record values.
Enter the gauge block’s actual size (e.g., 10.0002mm, not just 10mm)—this tells the CNC system to adjust for small block variations.
After calibration, measure the gauge block again. If the error is <±0.001mm, you’re done!
If not: Check the probe mounting (Qidu Metrology’s probe tool holders have alignment marks to fix loose connections) and repeat Step 3.
Calibration doesn’t have to be tedious. Qidu Metrology’s CNC probe accessories cut setup time by 50%:
Qidu Metrology Probe Tool Holder: Has built-in alignment lines—no need to adjust the probe position every time you calibrate. It fits Fanuc/Siemens spindles, so you won’t waste time on compatibility checks.
Qidu Metrology Calibration Kit: Includes a certified 10mm gauge block + a cleaning brush. The block is pre-marked with its exact size (e.g., 10.0003mm), so you skip measuring the block yourself.
One automotive parts shop in Ohio used Qidu Metrology’s kit and cut calibration time from 90 minutes to 40 minutes—saving 5 hours/week.
Even small errors here can ruin your work. Steer clear of these:
Using an uncertified gauge block: A cheap block with ±0.002mm error will make your probe calibration useless. Always use ISO-certified blocks (Qidu Metrology’s kit includes one).
Skipping worktable leveling: If the table is tilted, the gauge block sits unevenly—calibration readings will be off by ±0.001mm. Level the table first (use a spirit level).
Calibrating too often: Monthly checks are fine, but full calibration every 2 weeks wastes time. Stick to the 6-month rule unless you see warning signs.
Calibrating your CNC probe is one of the easiest ways to cut scrap rates and save money. Follow the 4 steps above, and you’ll keep your probe accurate to ±0.001mm—no professional help needed.
If you’re still struggling with:
Probes that stay inaccurate after calibration
Compatibility issues with Fanuc/Siemens systems
Calibration taking too long
Contact Qidu Metrology’s technical team for a free 15-minute consultation. We’ll help you troubleshoot, and even share a custom calibration checklist for your CNC machine.
Or download our 《CNC Probe Maintenance Checklist》—enter your email below to get it instantly (no spam, just practical tips).
