Radio wave signal, capable of transmission without fear of obstacles. Modular assembly, the probe length can be arbitrarily matched and is suitable for the mold, automotive, and military industries with deep - cavity measurement requirements.

Type CNC Touch Probe

Specification Combined probe

Brand Qidu Metrology

Model DRP25M

0757-22897623

Reservation Now

Detail

Main features

Radio wave signal

Battery life > 1 year, far leading in the industry

Extremely high operational stability, first - class in the industry

The length of the probe module part is adjustable, suitable for deep - cavity measurement needs

Intelligent frequency - switching technology, with great advantages

Suitable for machining occasions with deep - cavity measurement requirements

Product advantages

Radio wave signal, capable of obstacle - free transmission. Modular assembly, Φ25 diameter probe

and extension rods can be arbitrarily matched. The probe length is suitable for molds with deep - cavity measurement requirements.

Automobile and military industries

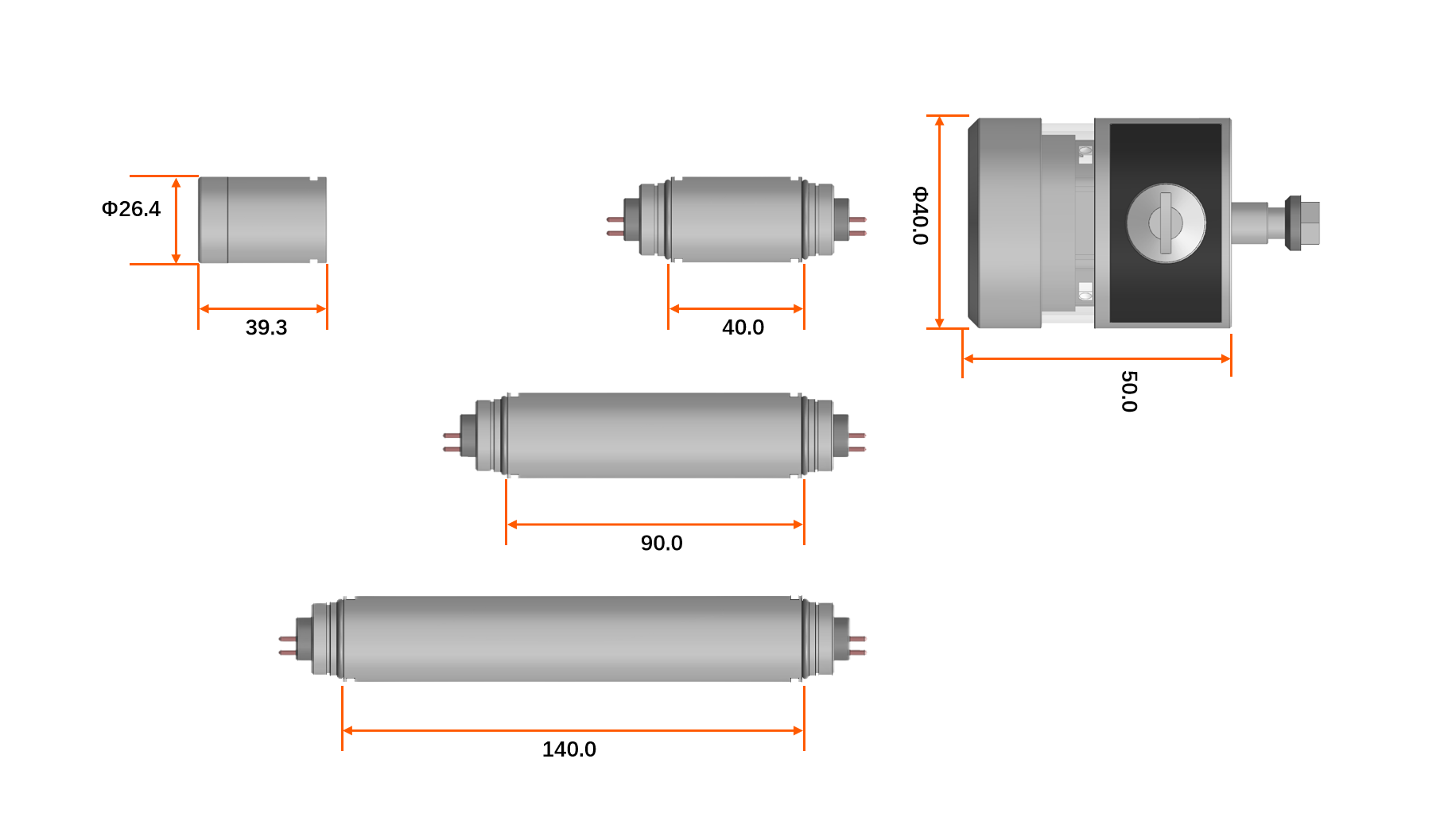

Dimension display

Product Parameters

model number	DRP25M
Repeatability of the probe in all directions Standard 50mm probe at 60MM/Min.	<1um(2σ)
Stylus trigger direction	±X,±Y,+Z
Stylus trigger force (50mm probe as standard)	XY plane 0.4~0.8N	Z direction 5.8N
Trigger protection stroke	XY plane +/-12.5°	Z direction 6.2mm
Signal Transmission Method	radio transmission
transmission distance	15m
Trigger life	>10 million times
transmission angle	360°along the probe axis
Probe opening and closing method	M-code
radio frequency	2.4GHz
Number of channels	>10000
Channel Switching	Intelligent Adaptive Frequency Hopping Switching
Signal Type	Dump Signal/False Alarm/Low Voltage Alarm/Signal Strength
Probe weight	280g
Battery Type	2x lithium battery 14250
Battery life	pragmatic	>1280 days
	3000 triggers/day	460 days
	8000 triggers/day	220 days
	15000 triggers/day	130 days
	Continuous triggering>2.5 million times
protection class	IP68
operating temperature	0-60℃
