Reliable radio frequency - hopping communication and extremely high operational stability, especially suitable for complex measurement requirements or machining occasions where the signal transmission distance is long or there are obstacles. For example, on - line measurement of multi - axis machines.

Type CNC Touch Probe

Specification Radio Touch Probe

Brand Qidu Metrology

Model DRP40-PRO

0757-22897623

Reservation Now

Detail

Main features
Battery life > 1 year, far ahead in the industry
Extremely high operational stability, first - class in the industry
Unlimited channel technology and intelligent frequency - switching technology, far ahead
Suitable for machining occasions where the signal transmission distance is long or there are obstacles
Product advantages
Reliable radio frequency - hopping communication, extremely high operational stability, especially suitable for complex measurement requirements or machining occasions where the signal transmission distance is long or there are obstacles. Such as on - line measurement of multi - axis machines.

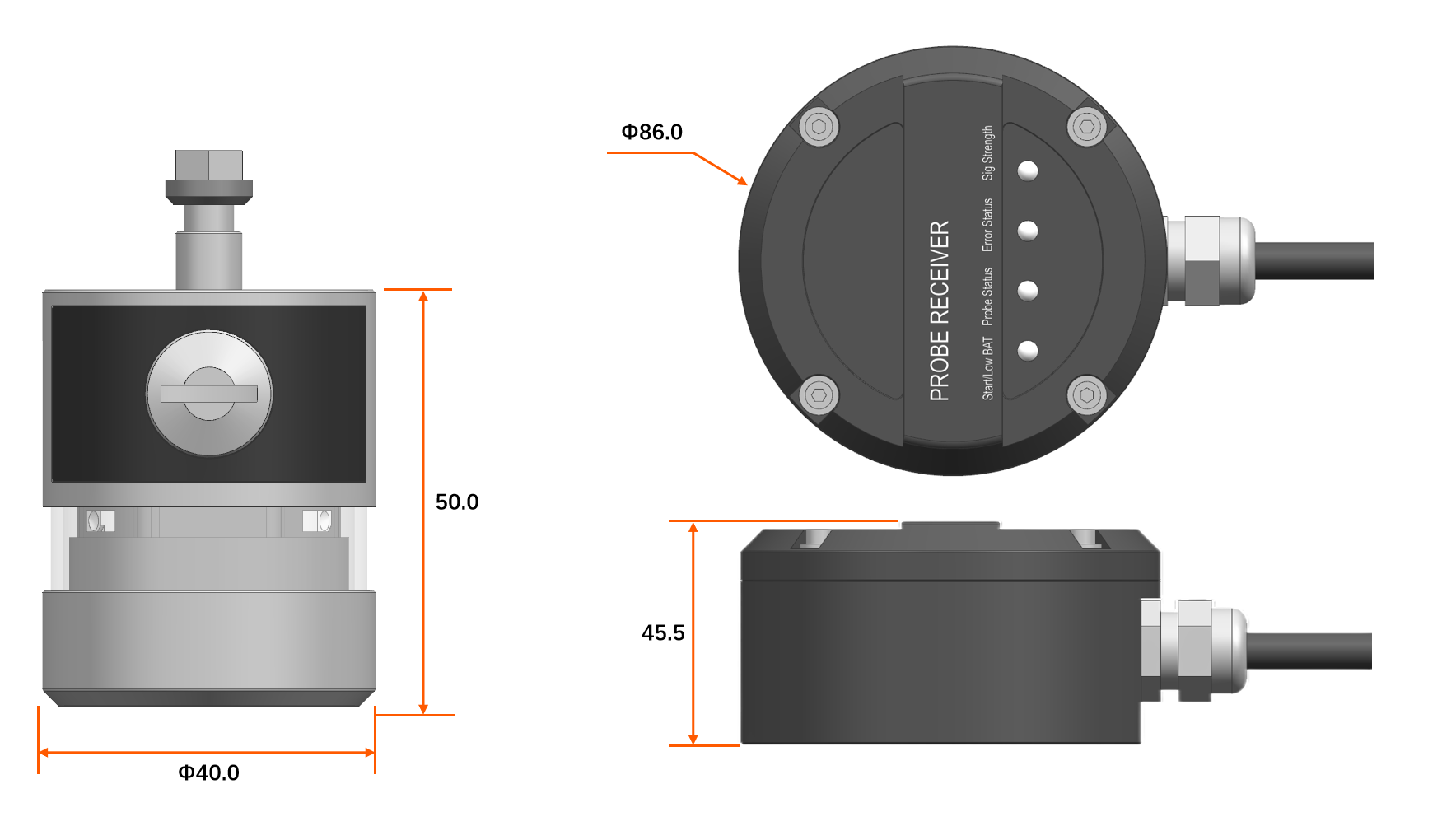

Dimension display

Product Parameters

model number	DRP40-PRO
Repeatability of the probe in all directions Standard 50mm probe at 60MM/Min.	<1um(2σ)
Stylus trigger direction	±X,±Y,+Z
Stylus trigger force(50mm probe as standard)	XY plane 0.4~0.8N	Z direction 5.8N
Trigger protection stroke	XY plane +/-12.5°	Z direction 6.2mm
Signal Transmission Method	radio transmission
transmission distance	15m
Trigger life	>10 million times
transmission angle	360°along the probe axis
Probe opening and closing method	M-code
radio frequency	2.4GHz
Number of channels	>10000
Channel Switching	Intelligent Adaptive Frequency Hopping Switching
Signal Type	pump Signal/False Alarm/Low Voltage Alarm/Signal Strength
Probe weight	280g
Battery Type	2x lithium battery 14250
Battery life	pragmatic	>1280 days
	3000 triggers/day	460 days
	8000 triggers/day	220 days
	15000 triggers/day	130 days
	Continuous triggering >2.5 million times
protection class	IP68
operating temperature	0-60℃
