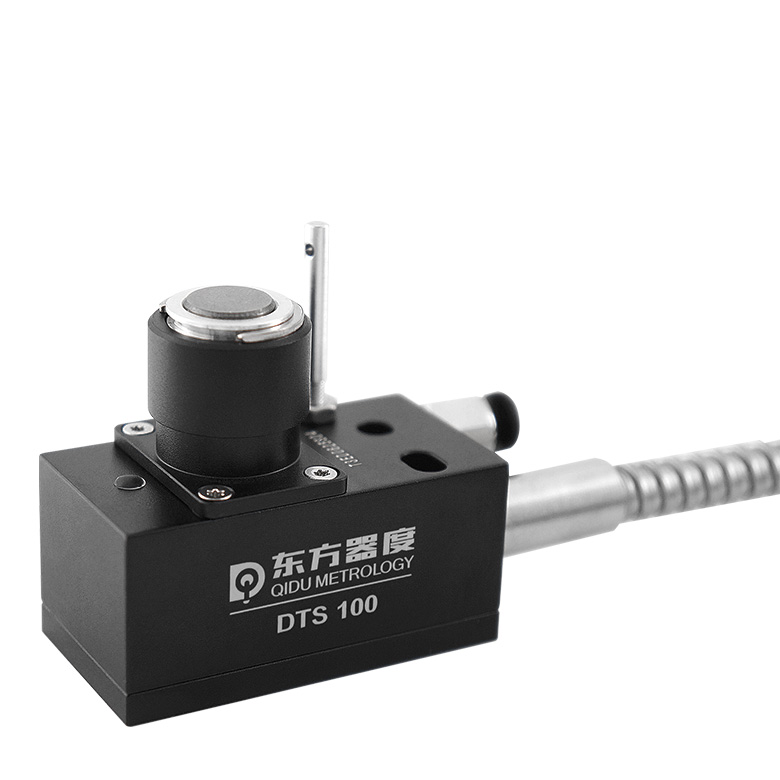

Tool setters DTS100
Main features
IP68 top-level protection rating
Small triggering force, capable of detecting small-diameter tools
Triggered by photoelectric sensors, with higher accuracy and longer service life. Suitable for engraving machines and high-gloss machines
Product advantages
One-way tool setter, capable of performing on-machine measurement of tool length, broken tool detection and automatic compensation for tools with a diameter of 0.1~10mm. The product uses cables to transmit signals.

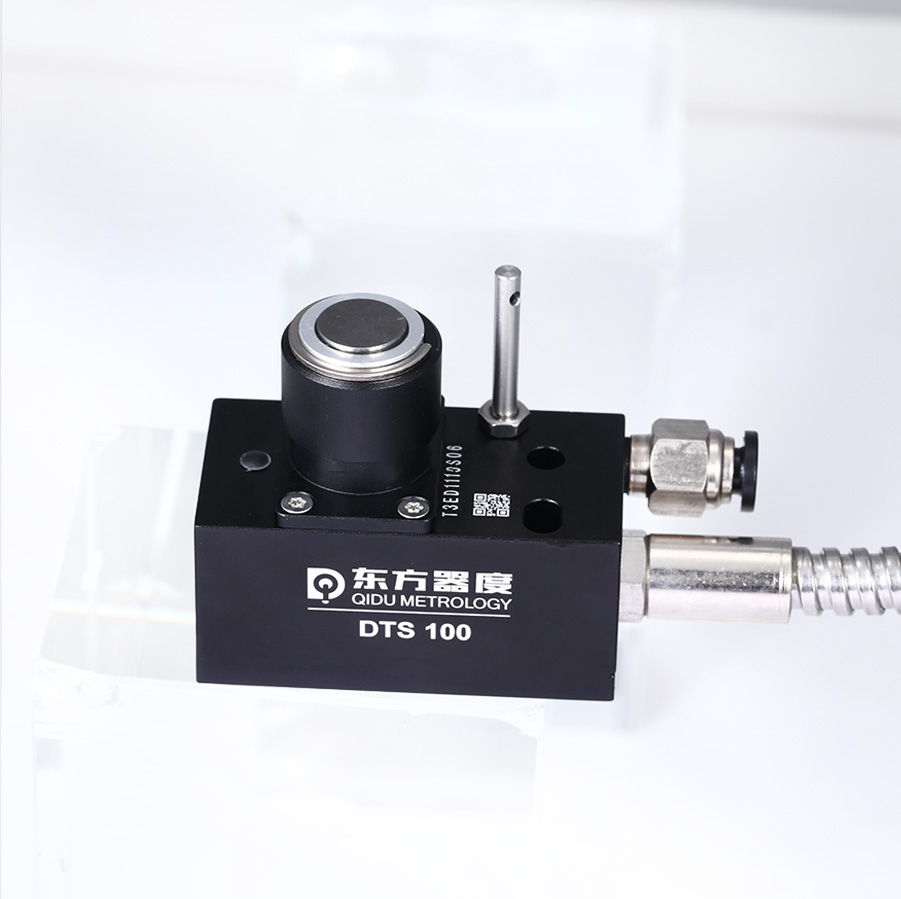

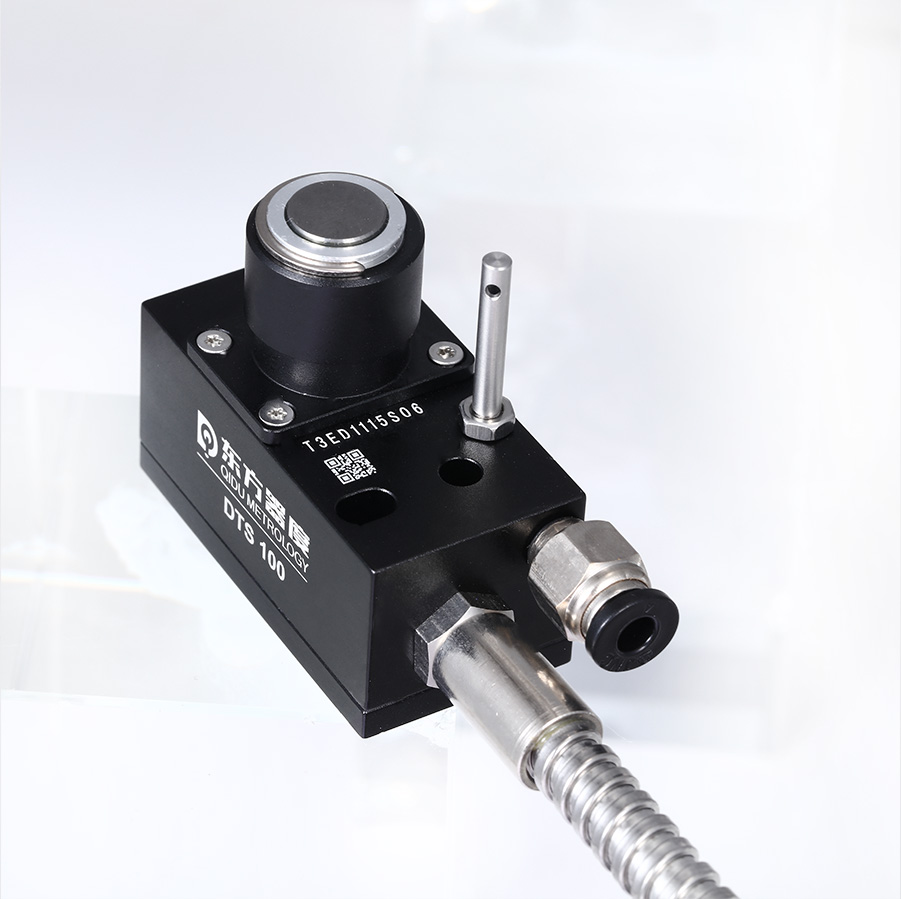

Composed of a photoelectric trigger switch, a hard contact head with high hardness and wear resistance, and a signal transmission interface, it is mainly applied to small-travel machine tools such as engraving machines and high-gloss machines.

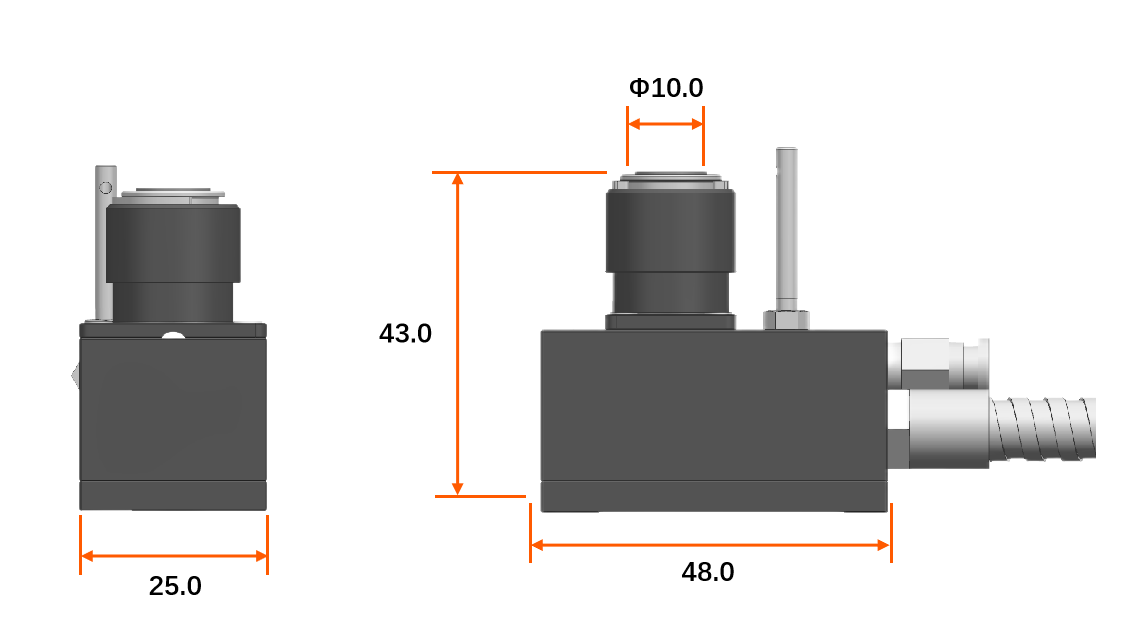

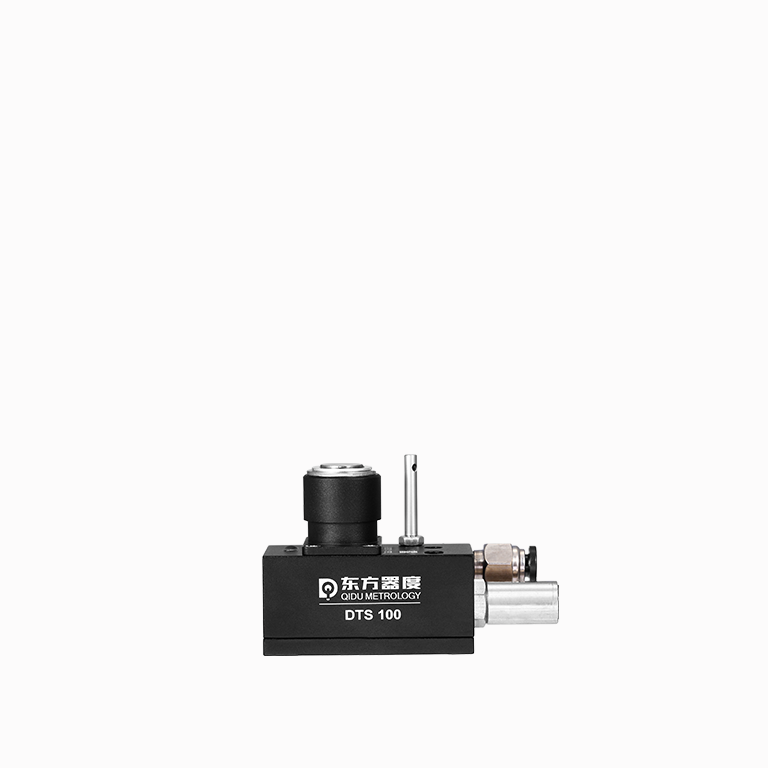

Dimension display
Product Parameters
| model number | DTS100 |
| Contact Diameter | φ10mm |
| Stylus trigger direction | +Z |
| exports | A/NC(normally closed) |
| pre-trip | 5.4mm |
| Repeatability(20) | ≤0.5um(Operating speed 50~200mm/min) |
| Trigger life | >20 million times |
| Signal Transmission Method | Cable(3m oil resistant 6 cores φ4.8) |
| protective structure | IP68 |
| contact force | 1.5N(mounting condition:vertical) |
| Contact Material | Cemented carbide |
| surface processing | Grinding 4S |
| Contact Ratings | DC24V 20mA(MAX)Recommended value 10mA) |
| protection tube | 1.5m Minimum bending radius R7 |
| LED light | Off at normal time Lights up at action |
