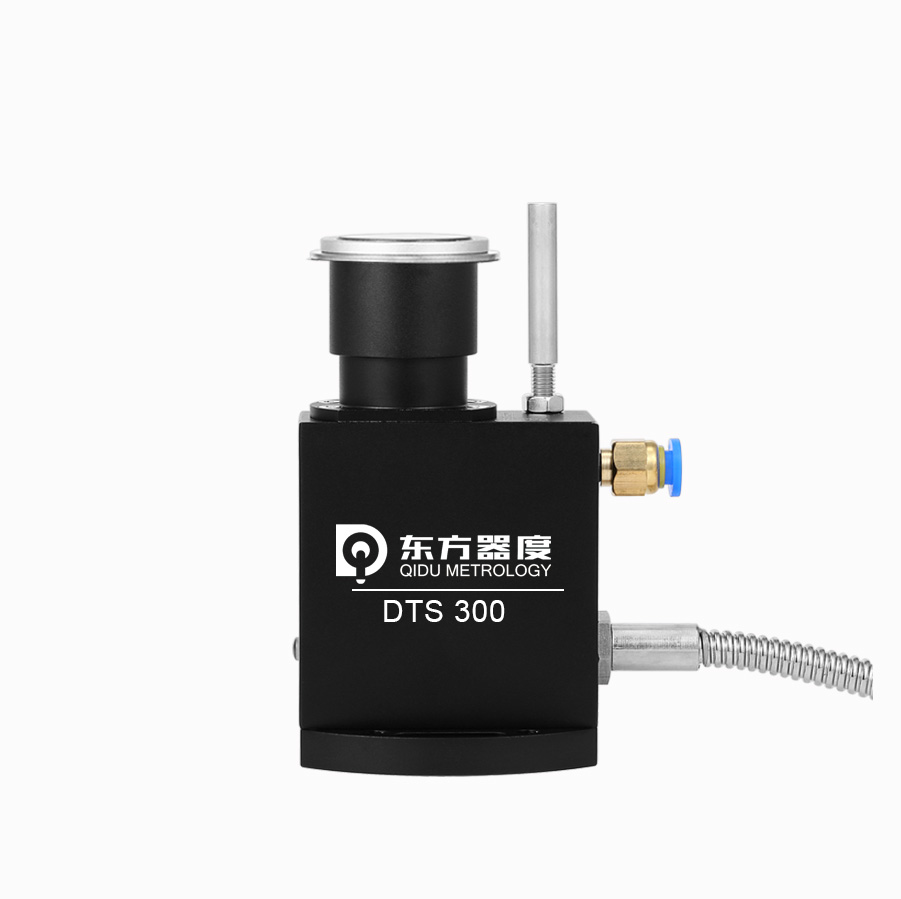

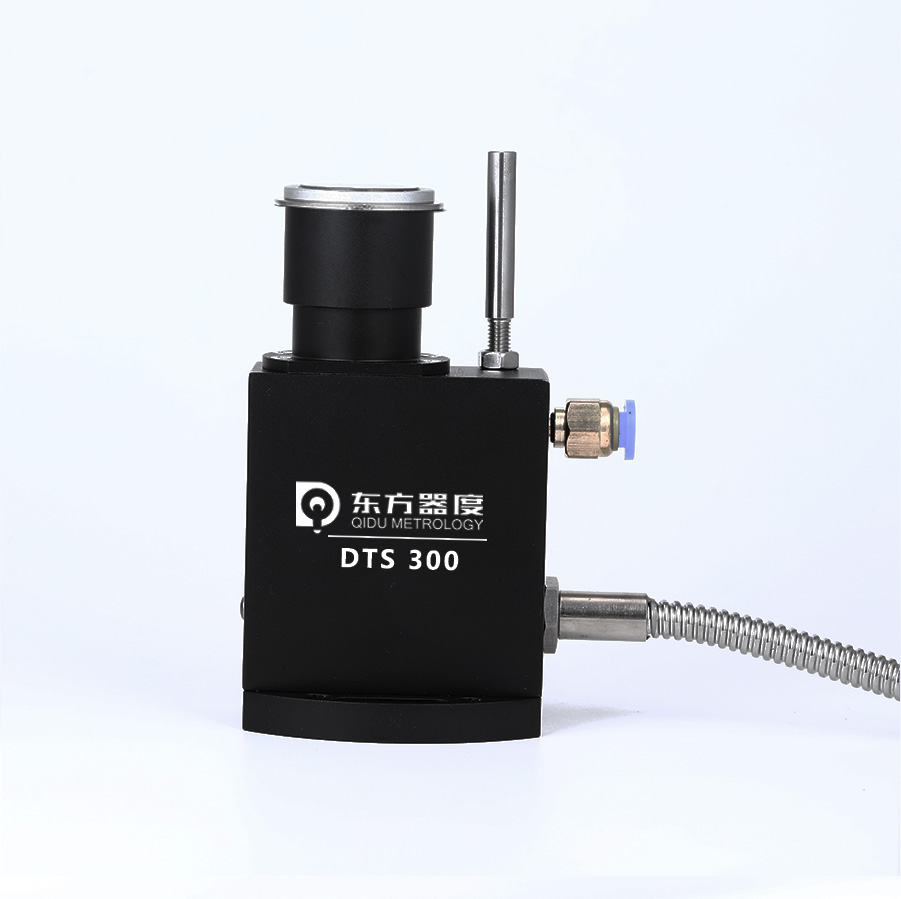

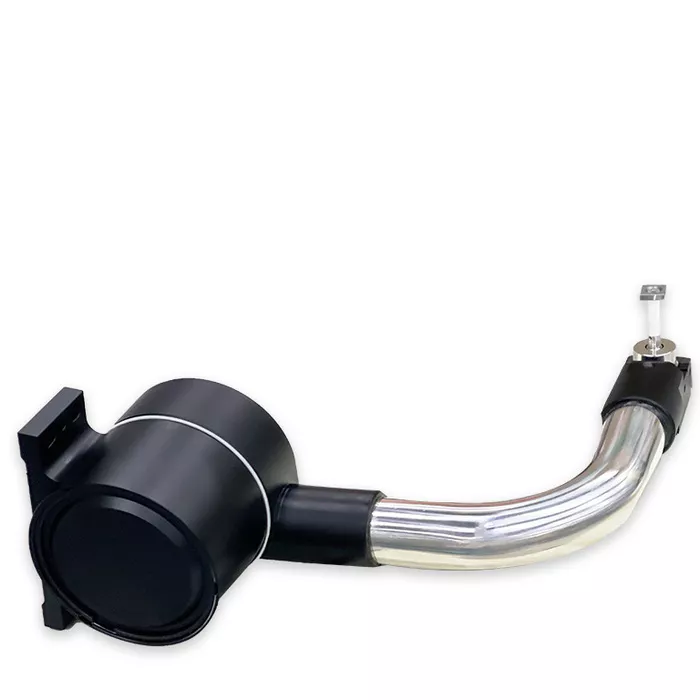

DTS300 is a photoelectric 1D tool setting gauge that can perform on-machine measurement of tool length, broken tool detection and automatic compensation for tools from 0.1mm to 30mm. The product uses cables to transmit signals. DTS300 consists of a photoelectric trigger switch, a hard contact head with high hardness and high wear resistance, and a signal transmission interface. The contact head is used to contact the tool, and through the flexible support rod installed under it, the force is transmitted to the high-precision switch; the on-off signals sent by the switch are transmitted to the CNC system through the interface to identify, calculate, compensate, store, etc. the tool length. DTS300 can automatically identify the wear and broken tool conditions of the tool, helping enterprises improve production efficiency and enhance the machining accuracy of products.

Type CNC Lathe Tool Setter

Specification Tool setters

Brand Qidu Metrology

Model DTS300

0757-22897623

Reservation Now

Detail

Main features

IP68 top - level protection rating

11MM large stroke design

Measurement accuracy ≤1μM

Triggered by photoelectric sensor, with higher accuracy and longer service life

Product advantages
Automatically measure the tool length, tool diameter, and tool run - out. The photoelectric trigger sensor has higher accuracy and can work in various complex environments.
Improve the tool detection speed and accuracy, reduce errors and scrap, and increase production capacity.

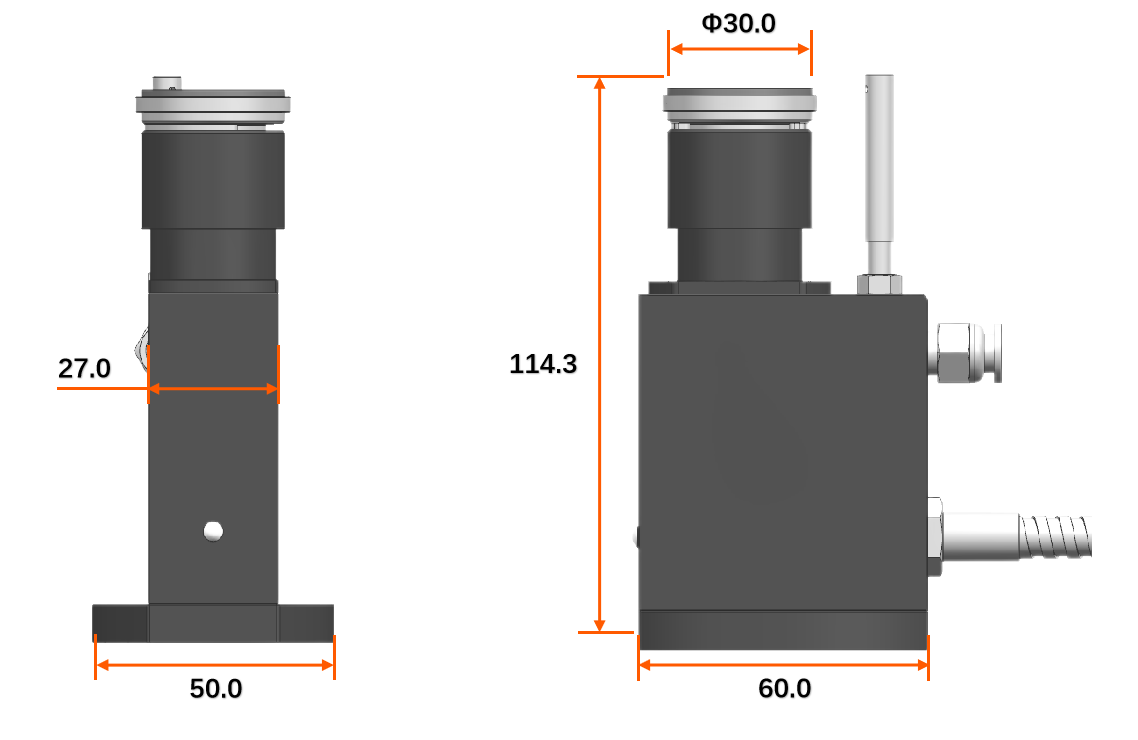

Dimension display

Product Parameters

model number	DTS300
Contact Diameter	φ30
Stylus trigger direction	+Z
exports	A/NO(normally open)
course (of history)	11mm
Trigger protection stroke	5.5mm
Repeatability(20)	≤0.5um (speed 50~200mm/min)
Trigger life	>20 million times

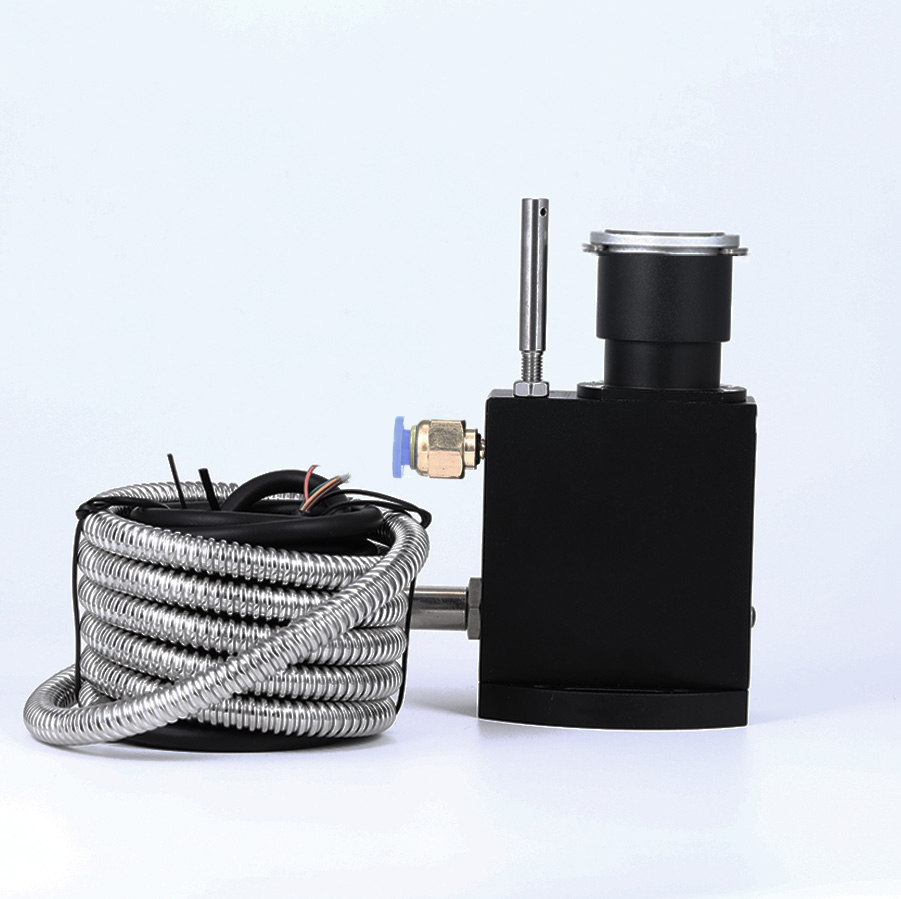

Signal Transmission Method	Cable(5m oil resistant 6 cores φ4.8)
protective structure	IP68
contact force	1.9N(mounting condition:vertical)
Contact Material	Cemented carbide
surface processing	Grinding 4S
Contact Ratings	DC24V 20mA(MAX)Recommended value 10mA)
protection tube	1.5m Minimum bending radius R7
LED light	Off at normal time Lights up at action
