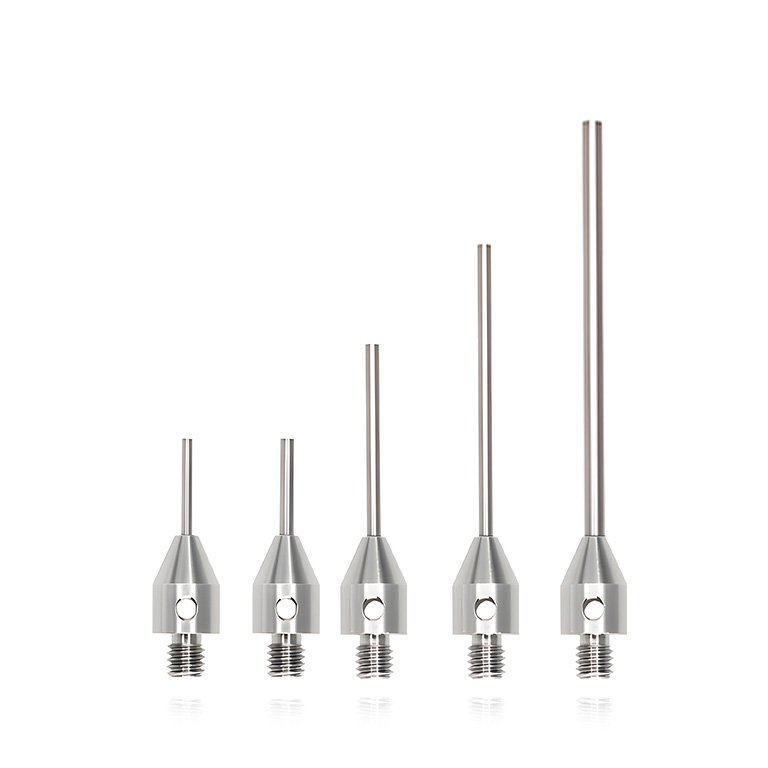

Cylindrical Flat Tip Stylus Series

Cylindrical probes are used for the side surfaces of cylinders, measuring the dimensions between thin cross - sections, curve profiles, or machined holes, etc. Only the measurement in the cross - sectional direction of the cylinder is effective, and there are many situations where it is difficult to measure in the axial direction (when the bottom part of the cylinder is machined into a spherical shape concentric with the cylindrical axis, measurement in the axial direction is also possible); when using the entire (height) of the cylindrical probe head, the cylindrical axis and the axis of the coordinate measuring machine should be aligned (usually the measurement should be carried out within the same cross - section).
