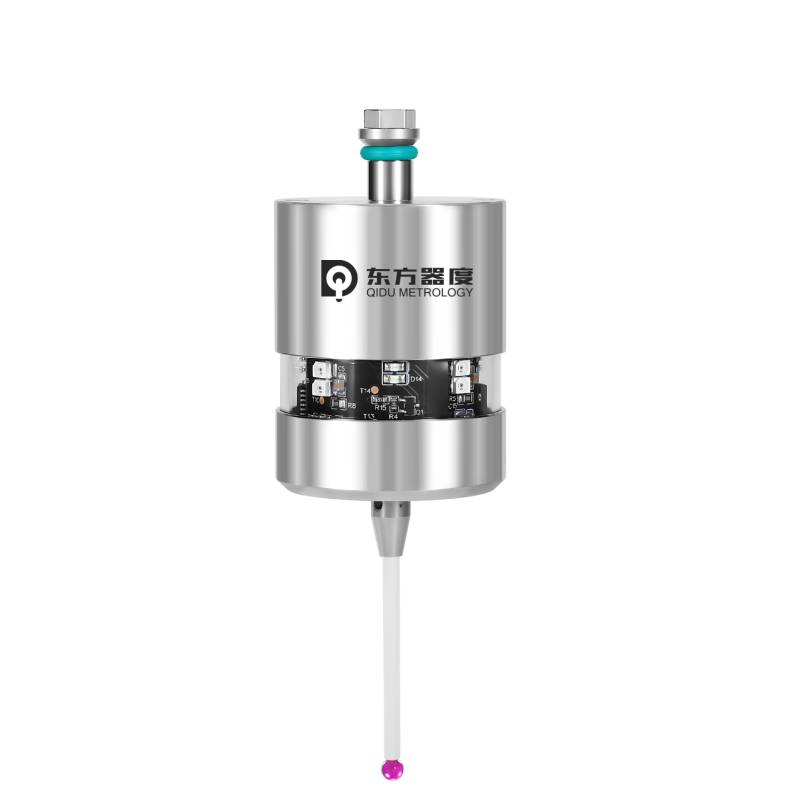

Infrared Machine Tool Probe DOP40
Main Features
Infrared dual channels, remote control frequency switching, one-button switching, the first in the industry
Battery life > 1 year, leading the industry
Extremely high operating stability, first-class in the industry
IP68 top protection level
Random pairing, easy management, suitable for 3C factories with large demand
Product Advantages
Easy to use, arbitrary pairing, convenient management, remote control frequency switching can be switched with one button
. It is suitable for 3C factories with high dimensional accuracy requirements to achieve various complex
High-precision measurement of workpieces greatly improves processing efficiency and reduces employee skills.
Can rely on automated detection of micron-level precision to reduce the scrap rate of dimensional tolerances,
Increase production capacity and save costs.
Size display
Product Parameters
| model number | DOP40 | |
| Repeatability of the probe in all directions Standard 50mm probe at 60MM/Min. | <1um(2σ) | |
| Stylus trigger direction | ±X,±Y,+Z | |
| Stylus trigger force (50mm probe as standard) | XY plane 0.4~0.8N | Z direction 5.8N |
| Trigger protection stroke | XY plane +/-12.5° | Z direction 6.2mm |
| Signal Transmission Method | optical transmission | |
| transmission distance | 5m | |
| Trigger life | >10 million times | |
| transmission angle | 360°along the probe axis | |
| Transmission On | Intelligent Switching | |
| Probe weight | 280g | |
| Battery Type | 2x lithium battery 14250 | |
| Battery life | pragmatic | >1080 days |
| 3000 triggers/day | 420 days | |
| 8000 triggers/day | 200 days | |
| 15000 triggers/day | 120 days | |
| Continuous triggering >2.5 million times | ||
| protection class | IP68 | |
| operating temperature | 0-60℃ | |
