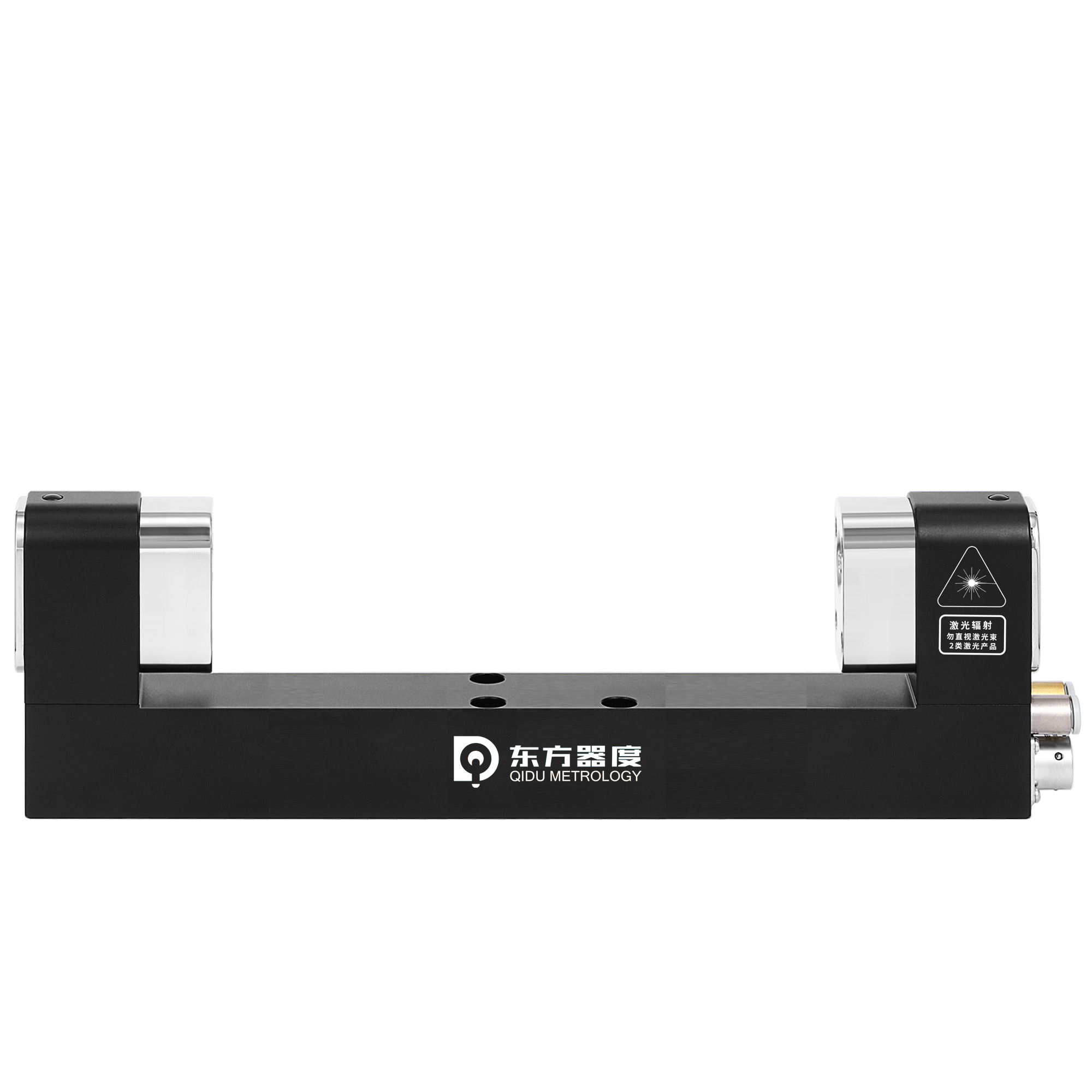

Laser Tool Setter DNC168

Main Features

Maximum repeatability (2σ) ≤ 0.1um

Conventional comprehensive accuracy (2σ) ≤1um

Adopting focused laser design, it can measure tools with a minimum tool diameter of 0.03mm

The tool length, tool diameter and tool runout can all be checked, including the damage of the tool teeth on multi-tooth tools

Automatically updates tool offset errors while also monitoring and compensating for thermal deformation of the machine tool spindle

Adopt non-contact laser detection, without touching the tool, with higher accuracy and stronger stability

10-meter water depth protection, exceeding IP68 top protection level

The software actively identifies and filters the interference of water droplets, greatly reducing false alarms

Product Advantages

Automatic measurement saves time

Excellent manufacturing quality and extremely low defective rate

Implementing a closed workflow

Unmanned and automated operation mode

Measure and monitor a wide range of tool types, shapes and cutting materials

Highly dynamic measurement of all tool features

Reduce measurement and inspection time by up to 60%

Dynamically adjust the measuring speed according to the rated speed of the tool

Reliable measurement despite coolant influences

Automatically filters out dirt and cooling lubricant adhering to the tool

Applies to:

Suitable for large CNC machining centers such as gantry CNC milling machines.

High-precision, high-speed non-contact tool setting and

Tool breakage detection.
