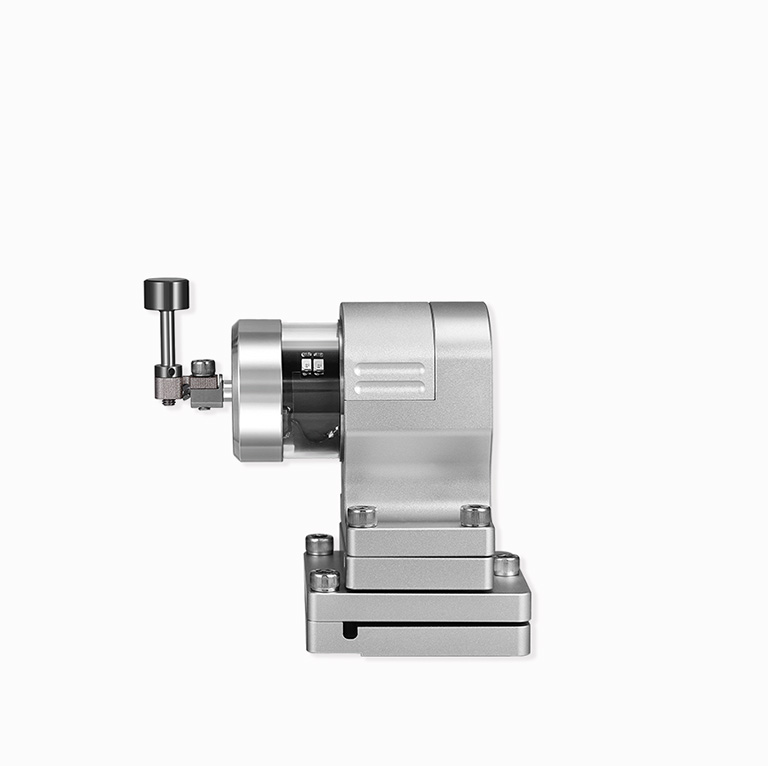

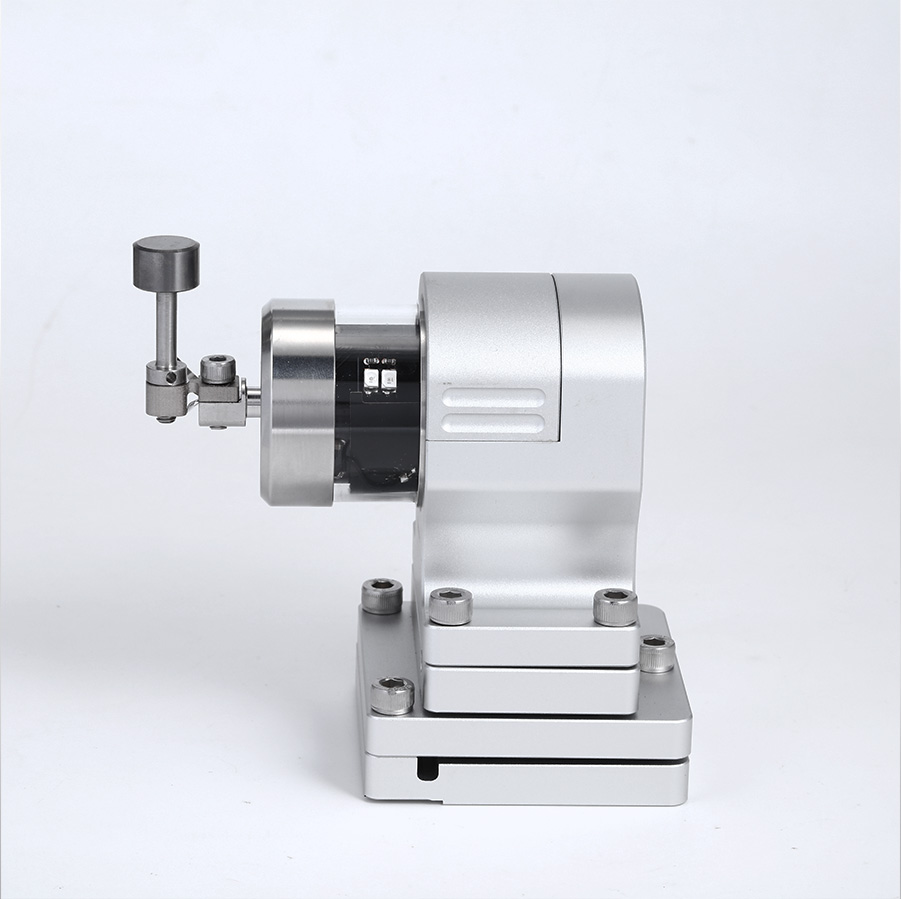

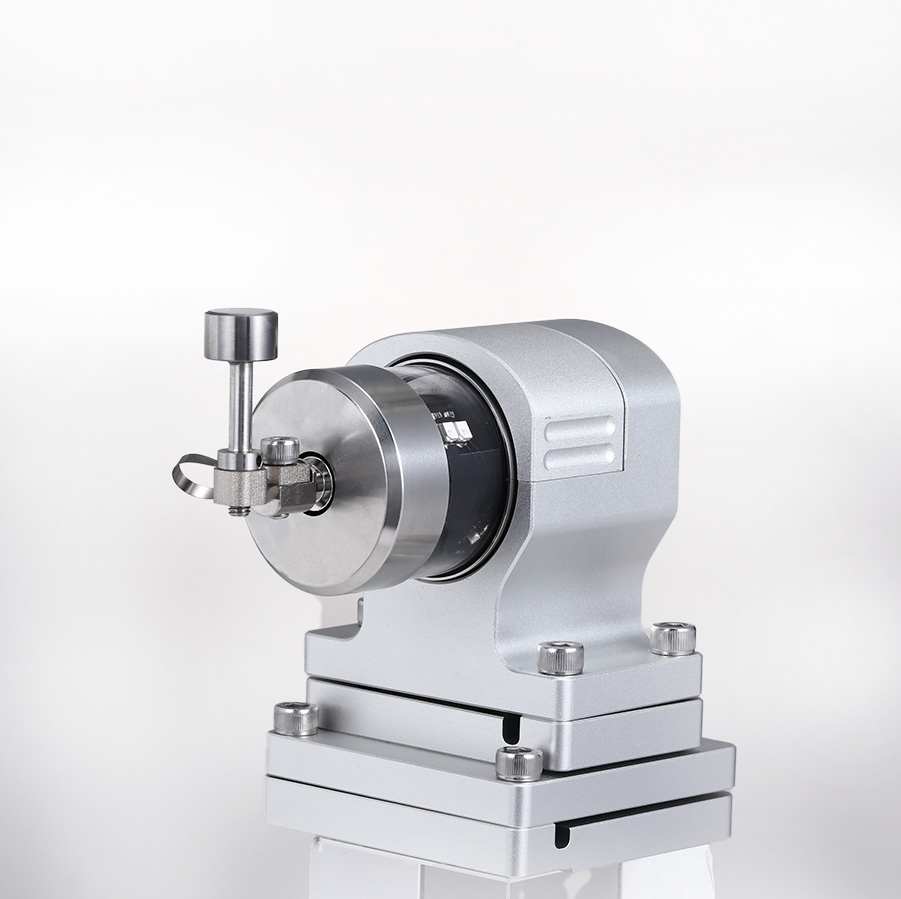

DMTS - R is a contact - type 3D tool setting gauge that can detect and automatically compensate for various tool breakages, tool diameters, and tool wear. The product uses radio signal transmission. DMTS - R consists of a high - precision switch, a hard polyhedral contact head with high hardness and high wear resistance, and a signal triggering mechanism. The contact head is used to contact the tool, and through the flexible support rod installed beneath it, the force is transmitted to the high - precision switch; the on - off signals sent by the switch are transmitted through the triggering mechanism. After the receiver receives the signals, they are transmitted to the CNC system to identify, calculate, compensate, store, etc. the tool length and diameter. DMTS - R can automatically identify the wear and breakage of the tool, helping enterprises improve production efficiency and enhance the machining accuracy of products.

Type CNC Lathe Tool Setter

Specification Tool setters

Brand Qidu Metrology

Model DMTS-R

0757-22897623

Reservation Now

Detail

Main Features

Radio transmission signal

Automatic measurement of tool length and tool diameter

IP68 top protection level

Suitable for all kinds of CNC machine tools with rotary tables or multiple tables

Suitable for machining occasions where the signal transmission distance is long or there are obstacles

Product Advantages

A contact type three-dimensional tool setting instrument, which can detect and automatically compensate for various broken tools, tool diameters and tool wear. It has a horizontal design, effective anti-collision of the main body, and a super-hard alloy design of the transfer rod.
The product uses radio signal transmission and is mainly used in machine tools with limited cable use, such as double-table machining centers. It can automatically identify
It can detect the wear and breakage of different cutting tools, helping enterprises to improve production efficiency and enhance product processing accuracy.
Product Parameters


model	DMTS-R
Output	A: NO (normally open)
Stylus trigger direction	±X，±Y，+Z
Pre-trip	none
journey	XY plane +/-15°	Z direction 6.2mm
Repeatability	≤1um (operating speed 50~200mm/min)
Trigger Lifetime	>10 million times
Protective structure	IP68
Contact Force	XY plane 0.4N-0.8N	Z direction 5.8N
Tool setting probe on/off mode	M Code
Channel Switching	Intelligent adaptive frequency hopping switching
Signal Type	Jump signal/error alarm/low voltage alarm/signal strength
Signal transmission method	radio
Contact material	Carbide
Surface processing	Grinding 4S
Contact rating	DC24V ≤10mA
Protection tube	3m Minimum bending radius R7
LED Light	Normally off Lights up when in motion

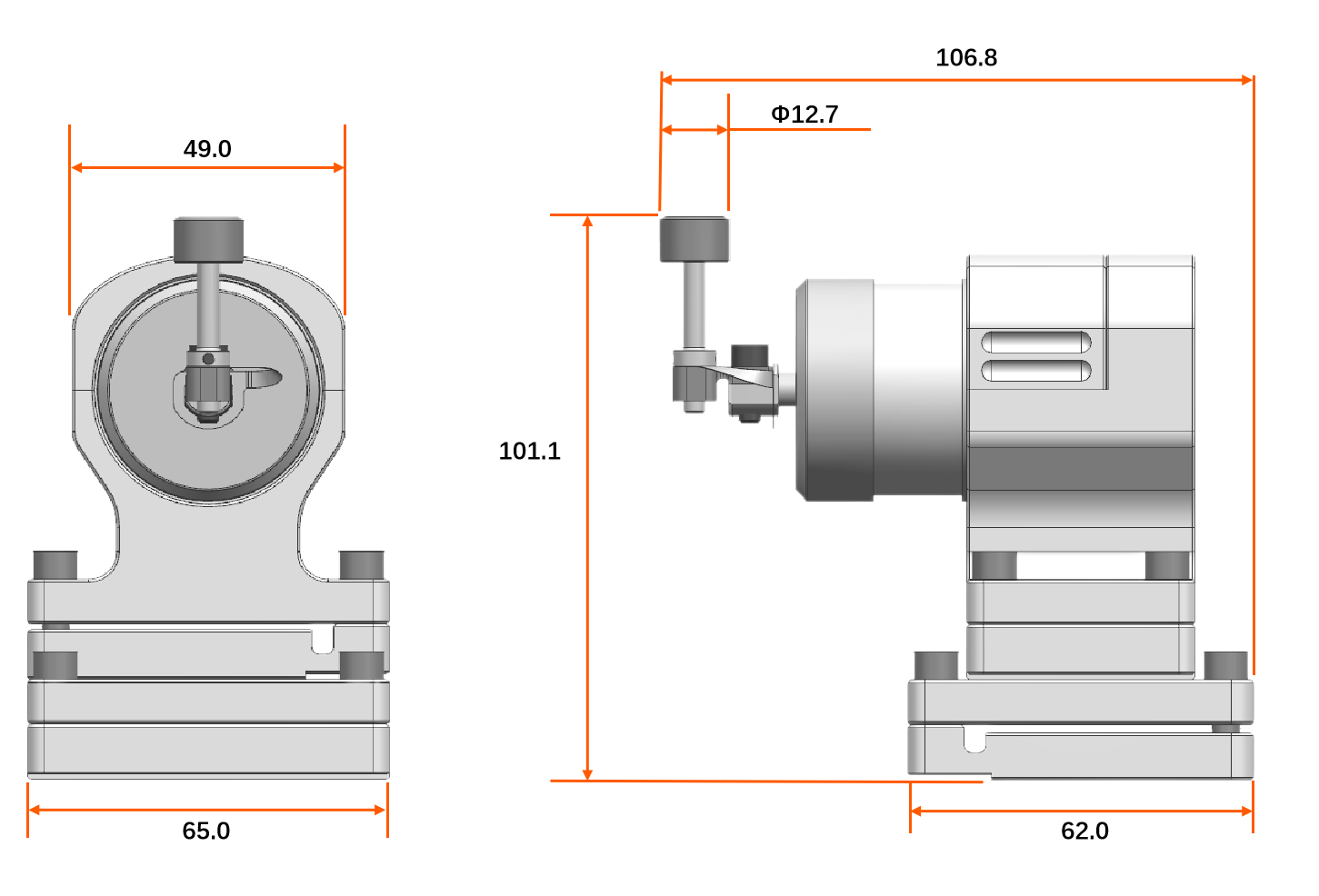

Size display

Product Parameters

model number	DMTS-R
exports	A:NO(normally open)
Stylus trigger direction	±X,±Y,+Z
pre-trip	not have
course(of history)	XY plane +/-15°	Z direction 6.2mm
Repeatability	≤1um(Operating speed 50~200mm/min)
Trigger life	>10 million times
protective structure	IP68
contact force	XY plane 0.4N-0.8N	Z direction 5.8N
Tool setting instrument on/off mode	M-code
Channel Switching	Intelligent Adaptive Frequency Hopping Switching
Signal Type	Jump Signal/False Alarm/Low Voltage Alarm/Signal Strength
Signal Transmission Method	radio
Contact Material	superhard alloy
surface processing	Grinding 4S
Contact Ratings	DC24V≤10mA
protection tube	3m Minimum bending radius R7
LED light	Off at normal time Lights up at action
