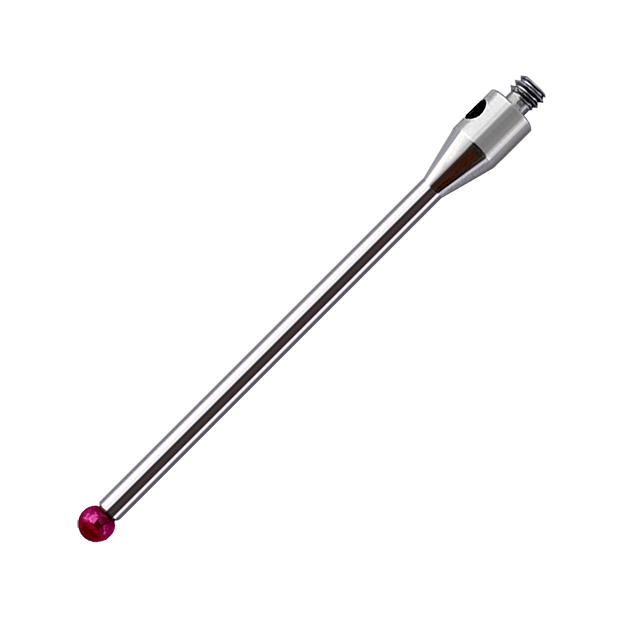

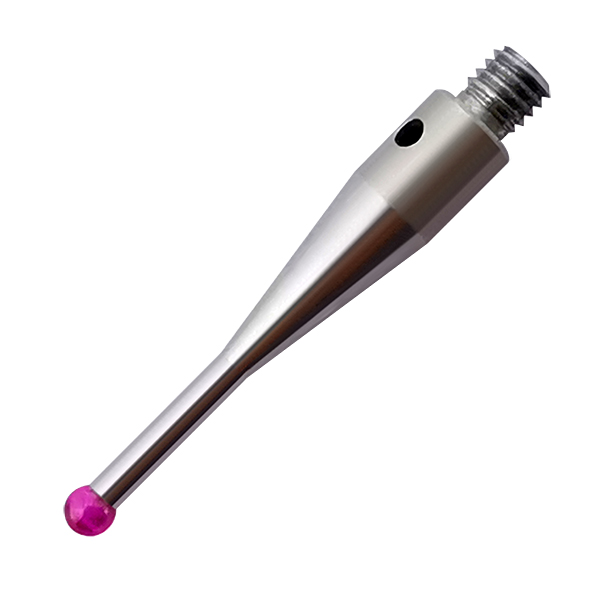

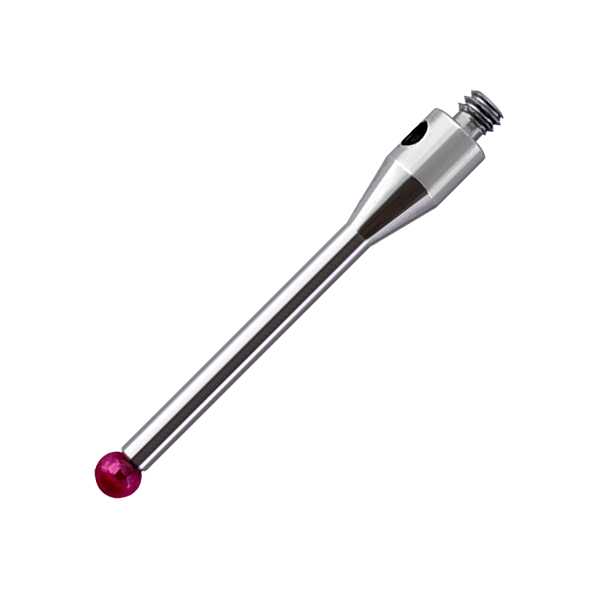

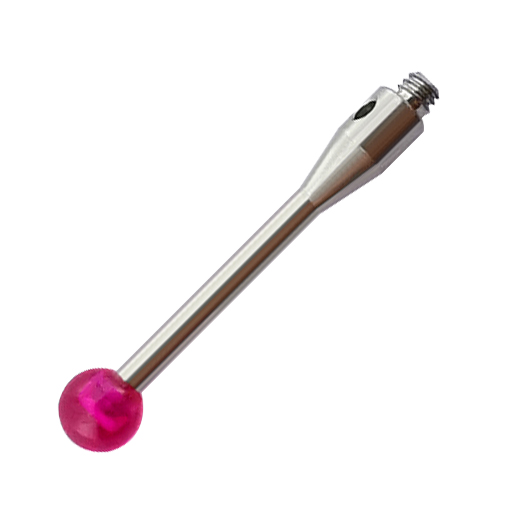

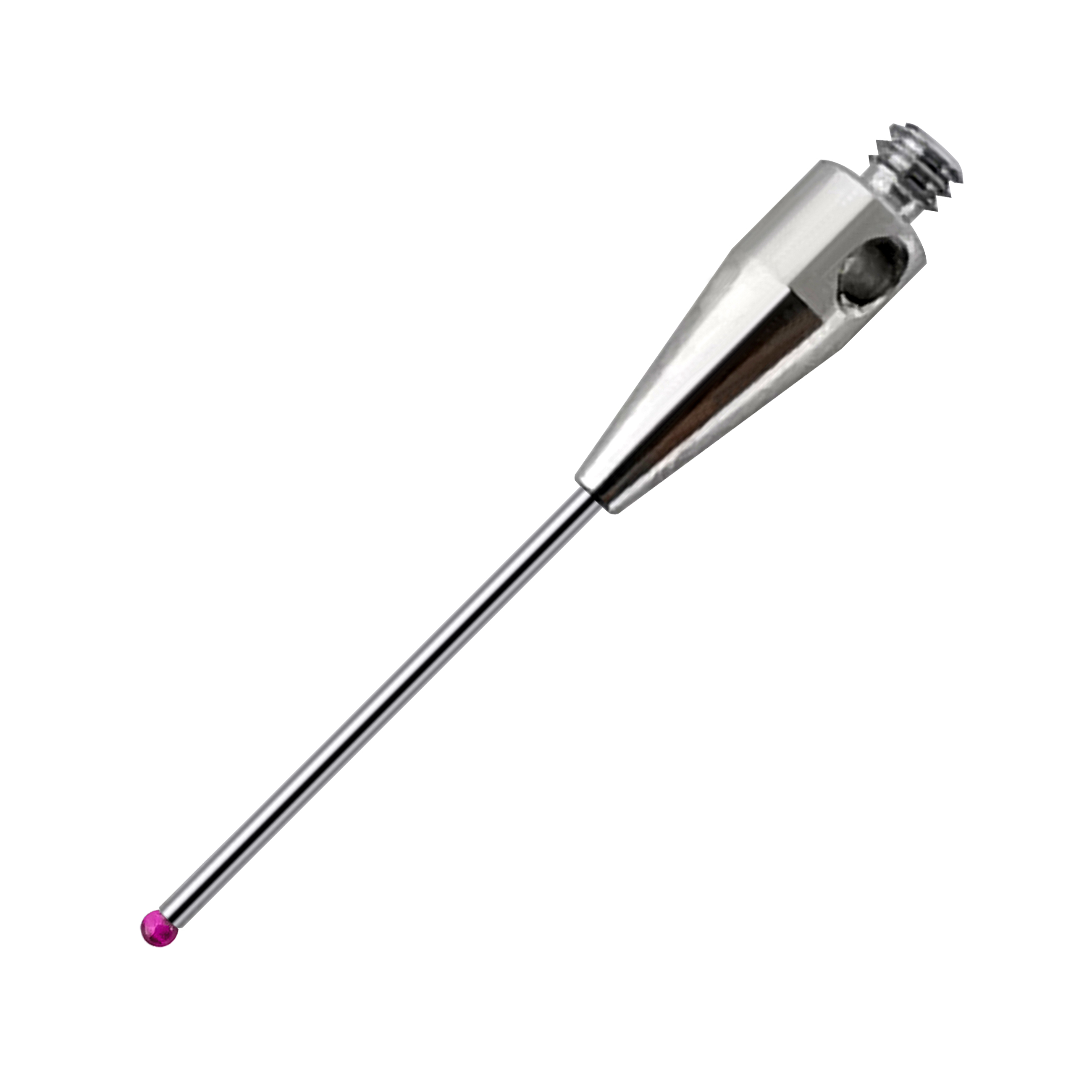

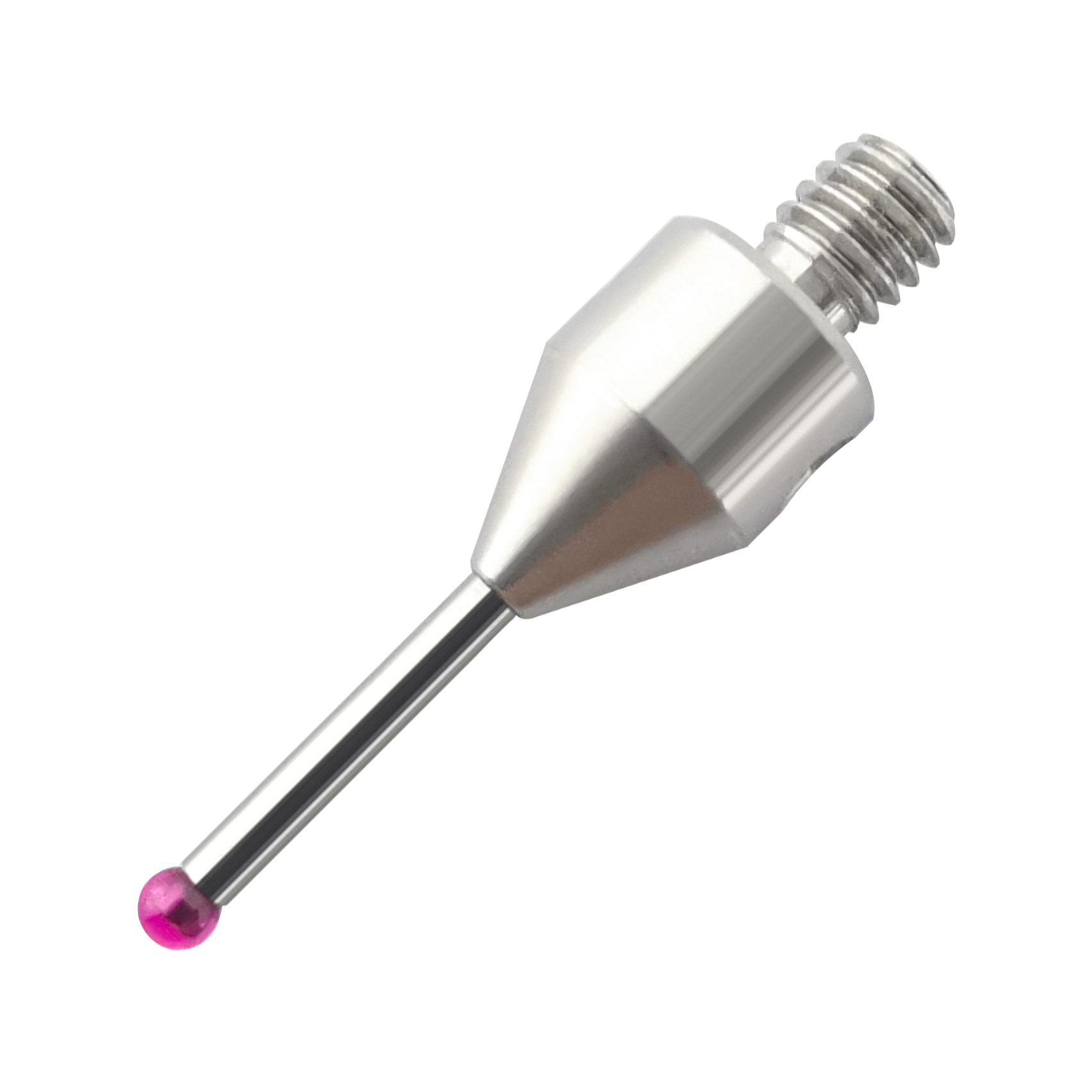

Tungsten Carbide Ruby Ball Stylus High Rigidity
QR code
share

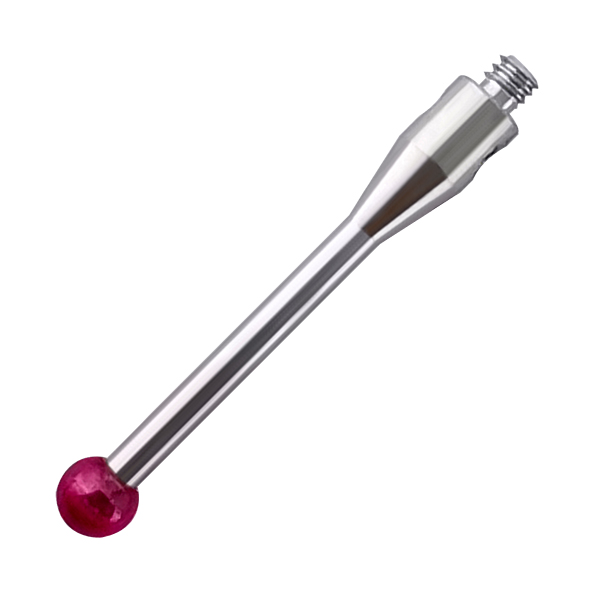

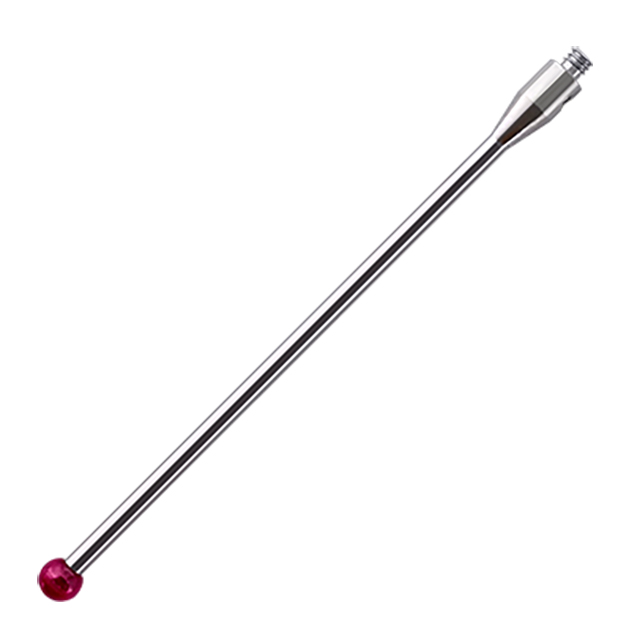

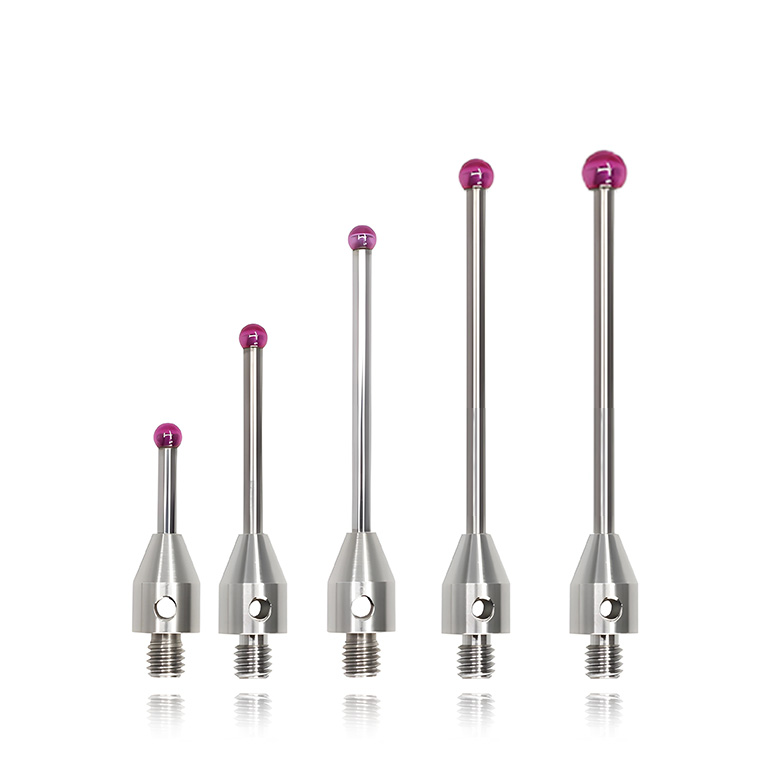

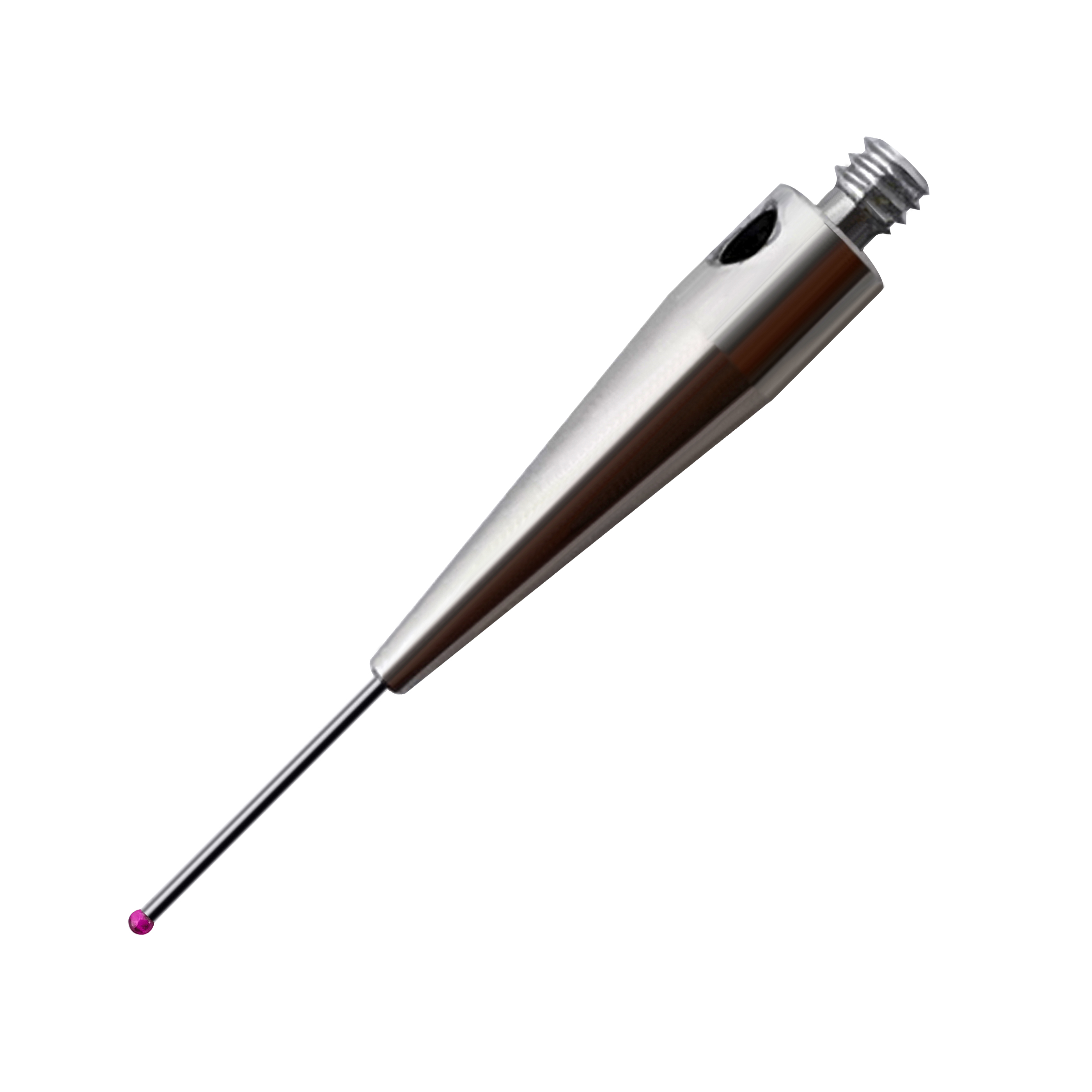

A stylus is a measuring component that contacts the workpiece during measurement and is usually composed of a stylus shaft and a stylus ball. Its working principle is to make the probe device produce displacement by contacting the workpiece and obtain the measurement value according to the generated signal, thus achieving accurate measurement.
Detail

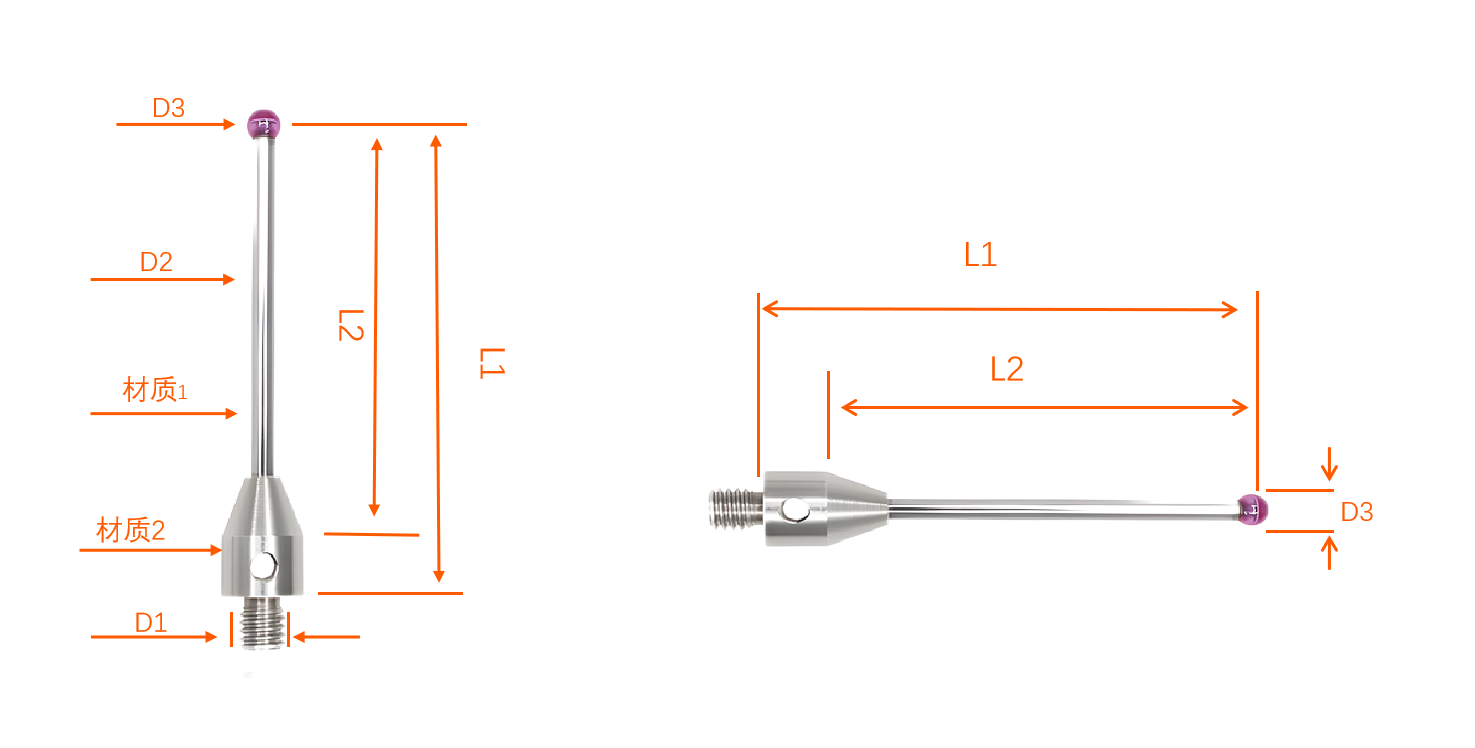

L1: Total length
L2: Effective working length
D3: ball diameter
| Probe model | Screw thread | Material 1 | Material 2 | Length L1 | Diameter D1 | Diameter D2 | Diameter D3 | Contact shape |
| M2-DWB10-0.3 | M2 | Tungsten Carbide | Stainless steel | 10 | 3.0 | 0.2 | 0.3 | spherical |
| M2-DWB10-0.5 | M2 | Tungsten Carbide | Stainless steel | 10 | 3.0 | 0.4 | 0.5 | spherical |
| M2-DWB20-0.5 | M2 | Tungsten Carbide | Stainless steel | 20 | 3.0 | 0.3 | 0.5 | spherical |
| M2-DWB20-0.7 | M2 | Tungsten Carbide | Stainless steel | 20 | 3.0 | 0.5 | 0.7 | spherical |
| M2-DWB10-1.0 | M2 | Tungsten Carbide | Stainless steel | 10 | 3.0 | 0.7 | 1.0 | spherical |
| M2-DWB20-1.0 | M2 | Tungsten Carbide | Stainless steel | 20 | 3.0 | 0.7 | 1.0 | spherical |
| M2-DWB20-1.0-2 | M2 | Tungsten Carbide | Stainless steel | 20 | 3.0 | 0.8 | 1.0 | spherical |
| M2-DWB30-1.0 | M2 | Tungsten Carbide | Stainless steel | 30 | 3.0 | 0.7 | 1.0 | spherical |
| M2-DWB20-1.5 | M2 | Tungsten Carbide | Stainless steel | 20 | 3.0 | 1.0 | 1.5 | spherical |
| M2-DWB30-1.5 | M2 | Tungsten Carbide | Stainless steel | 30 | 3.0 | 1.0 | 1.5 | spherical |
| M2-DWB20-2.0 | M2 | Tungsten Carbide | Stainless steel | 20 | 3.0 | 1.0 | 2.0 | spherical |
| M2-DWB30-2.0 | M2 | Tungsten Carbide | Stainless steel | 30 | 3.0 | 1.5 | 2.0 | spherical |
| M2-DWB40-2.0 | M2 | Tungsten Carbide | Stainless steel | 40 | 3.0 | 1.5 | 2.0 | spherical |
| M2-DWB20-2.5 | M2 | Tungsten Carbide | Stainless steel | 20 | 3.0 | 1.0 | 2.5 | spherical |
| M2-DWB30-2.5 | M2 | Tungsten Carbide | Stainless steel | 30 | 3.0 | 2.0 | 2.5 | spherical |
| M2-DWB40-2.5 | M2 | Tungsten Carbide | Stainless steel | 40 | 3.0 | 2.0 | 2.5 | spherical |
| M2-DWB20-3.0 | M2 | Tungsten Carbide | Stainless steel | 20 | 3.0 | 1.5 | 3.0 | spherical |
| M2-DWB30-3.0 | M2 | Tungsten Carbide | Stainless steel | 30 | 3.0 | 2.0 | 3.0 | spherical |
| M2-DWB40-3.0 | M2 | Tungsten Carbide | Stainless steel | 40 | 3.0 | 2.0 | 3.0 | spherical |
| M2-DWB50-3.0 | M2 | Tungsten Carbide | Stainless steel | 50 | 3.0 | 2.0 | 3.0 | spherical |
| M2-DWB20-4.0 | M2 | Tungsten Carbide | Stainless steel | 20 | 3.0 | 2.0 | 4.0 | spherical |
| M2-DWB30-4.0 | M2 | Tungsten Carbide | Stainless steel | 30 | 3.0 | 2.0 | 4.0 | spherical |
| M2-DWB40-4.0 | M2 | Tungsten Carbide | Stainless steel | 40 | 3.0 | 2.0 | 4.0 | spherical |
| M2-DWB50-4.0 | M2 | Tungsten Carbide | Stainless steel | 50 | 3.0 | 2.0 | 4.0 | spherical |
| M2-DWB20-5.0 | M2 | Tungsten Carbide | Stainless steel | 20 | 3.0 | 2.5 | 5.0 | spherical |
| M2-DWB30-5.0 | M2 | Tungsten Carbide | Stainless steel | 30 | 3.0 | 2.5 | 5.0 | spherical |
| M2-DWB40-5.0 | M2 | Tungsten Carbide | Stainless steel | 40 | 3.0 | 2.5 | 5.0 | spherical |
| M2-DWB50-5.0 | M2 | Tungsten Carbide | Stainless steel | 50 | 3.0 | 2.5 | 5.0 | spherical |
| M3-DWB21-0.5 | M3 | Tungsten Carbide | Stainless steel | 21 | 4.0 | 0.4 | 0.5 | spherical |
| M3-DWB20-1.0 | M3 | Tungsten Carbide | Stainless steel | 20 | 4.0 | 0.7 | 1.0 | spherical |
| M3-DWB20-1.5 | M3 | Tungsten Carbide | Stainless steel | 20 | 4.0 | 1.0 | 1.5 | spherical |
| M3-DWB30-1.5 | M3 | Tungsten Carbide | Stainless steel | 30 | 4.0 |
